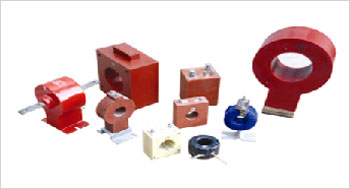

Low Tension Current Transformers
Low Tension Current Transformers
These are for Indoor panel metering in Tape Wound, Moulded Case or Resin Cast type. We can design to suit customer requirements for Dimensions, Burden, and Accuracy.
- Ring Type and Wound Primary Type for Panel Mounting Application
- Resin Cast, Tape Wound, Plastic Moulded Type
- Manufacturing as per Latest IS & IEC standards.
- Primary Current, Secondary Current, Accuracy Class and Burden as Specified.

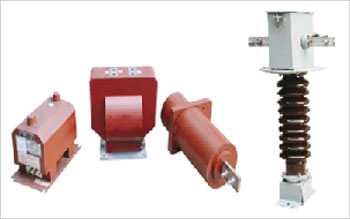

Resin Cast CT & PT
Resin Cast Current Transformers & Potential Transformers
These are for panel mounting application upto 11KV class manufactured with latest technologies.
- Indoor Panel Mounting Application
- Voltage Class: 6.6KV to 11KV.
- Secondary Current for CT: 1A or 5A
- Secondary Voltage PT: 110V / v3 or 110V
- Manufacturing as per Latest IS & IEC standards.
- Primary Current, Accuracy Class, Burden and Number of Secondary Cores / Winding as Specified.

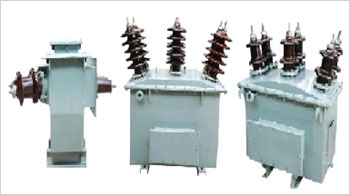

CT - PT Combined Metering Units
Metering Units i.e., combination of Current Transformers & Potential Transformers
These are combination of Current & Potential Transformers units used for 3 Phase HT Metering purposes in Indoor or Outdoor applications, with accuracy upto 0.2S class.
- Used for HT Metering
- Voltage Class: 11KV / 22KV / 33KV class
- Oil Filled Outdoor or indoor type
- Manufacturing as per IS & IEC standards.
- Primary Current, Accuracy Class, Burden and Number of Secondary Cores / Windings as Specified.

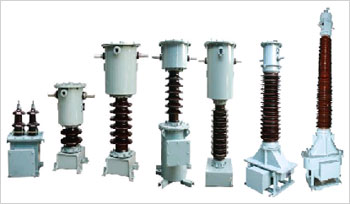

Oil Filled Outdoor Current Transformers
For use in outdoor installation from 11 KV to 245 KV class. Main insulation is provided by world class insulating paper, EHV Grade Oil and good MS Metal Tanks are used along with type tested porcelain insulation. Current Transformers can be of Live or Dead tank type. The process control is very stringent to give the customer a trustworthy product with long life.
- Hermetically Sealed Oil Filled Outdoor Type.
- Single Phase Live or Dead Tank Type
- Voltage Class: 11KV .... 245KV Class
- Manufacturing as per Latest IS & IEC standards.
- Secondary Current: 1A or 5A
- Primary Current, Accuracy Class (upto 0.2S), Burden, Short Time Current and Number of Secondary Cores as Specified.

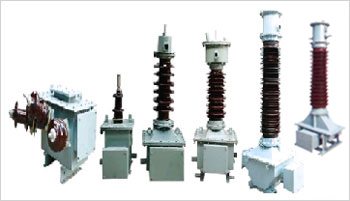

Oil filled Potential / Voltage Transformers
For use in outdoor installations from 11KV to 145KV class. Main insulation is provided by world class insulating paper, EHV Grade Oil and good MS Metal Tanks are used along with type tested porcelain. The process control is very stringent to give the customer a trustworthy product with long life.
- Hermetically Sealed Oil Filled Outdoor Type
- Three Phase type up to 33KV Class, Voltage Class: 11KV / 22KV / 33KV
- Manufacturing as per Latest IS & IEC standards.
- Secondary Voltage: 110V / v3 or 110V
- Accuracy Class (upto 0.2), Burden, RVF and Number of Secondary Windings as Specified.
- Single Phase type from 11KV to 245KV
